EE55 EE Type Transformer , Ferrite Medium Frequency Transformer

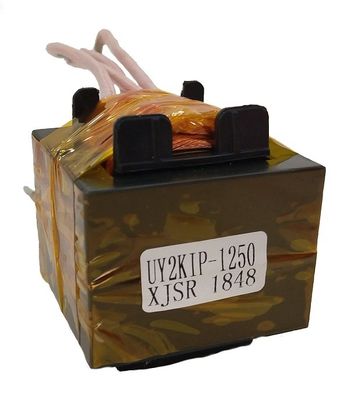

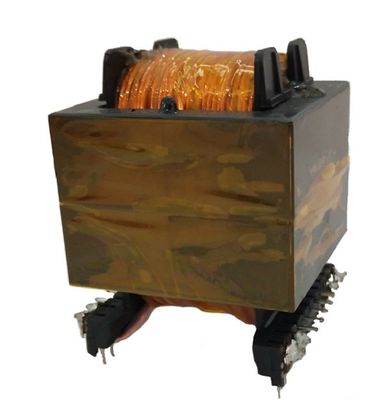

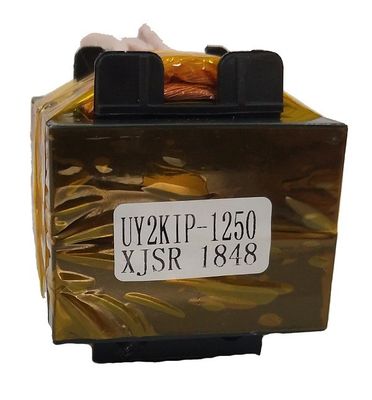

Large Image : EE55 EE Type Transformer , Ferrite Medium Frequency Transformer

Product Details:

Place of Origin:	Guangdong,shenzhen
Brand Name:	XJSR
Certification:	RoHS,ISO9001-2001
Model Number:	EE55

Contact Now

EE55 EE Type Transformer , Ferrite Medium Frequency Transformer

Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Material:	Ferrite	Input Voltage:	230VAC
Output Voltage:	10V,17V,24V,30V	Power:	80VA
Model:	EE55 EE14 EE16 EI22 ED8 EI66 EE8.3 EE10 EE12 EE15 EE19 EE20 EE22 EE25 EE29 EE42 EE44 EE48 PQ26	Type:	EE EI PQ EFD EF
High Light:	EE48 EE Type Transformer , ee44 EE Type Transformer , ee65 medium frequency transformer

Features and application scope:

The utility model has the advantages of wide application range, high working frequency, high conversion efficiency, high frequency pulse voltage conversion, etc., and is widely used in switching power supply, computers, electronic ballasts, household appliances, etc.

Product serial number and parameters:

序号	针数	尺寸(mm)						TYPE
序号	针数	A	B	C±0.5	D±0.5	E±0.5	F	TYPE
SR-EE-8.3	6	8	8	6	4	2.5	8.3	V
SR-EE-10	8	11.5	10.2	8	4	2.5	10.2	V
SR-EE-13	10	12	12.5	8.5	4	2.5	13	V
SR-EE-16-1	6	14.8	13.3	9	4	3	16	V
SR-EE-16-2	10	15.4	13	10.5	4	3.2	17.1	V
SR-EEL-16	10	28.5	16	12.3	4	4.3	21.9	V
SR-EE-19-1	8	17.6	16	10	4	5	19	V
SR-EE-19-2	10	17.2	16.2	13	4	3.9	20	V
SR-EEL-19	10	31.5	16	10.5	4	4	21.1	V
SR-EEL-19-1	10	15.6	30	24.1	4	3.5	21	H
SR-EE-25-1	6	20	18.2	12.5	4	6.3	25.2	V
SR-EE-25-2	8	21.7	17.5	12.6	4	5	25.2	V
SR-EE-25-3	10	22.2	25	15.4	4	5	26.1	H
SR-EEL-25	8	35.3	17.5	12.5	4	5	25.2	V
SR-EE-30	10	21	29.2	25.2	4	5	30	H
SR-EE-40	14	27.6	30.5	25.8	4	5	40	H
SR-EE-42/15-1	12	33.8	44	35.5	4	5	42	H
SR-EE-42/15-2	16	41.3	48	37.7	4	5	42	H
SR-EE-42/15-3	18	48.7	32	27.5	4	5	45.1	V
SR-EE-42/20-1	12	45	39.8	32.5	4	5	42	V
SR-EE-42/20-2	16	44.2	50	37.8	4	5	42.2	H
SR-EE-42/20-3	18	44.1	37	27.3	4	5	45.3	V
SR-EE-55	20	50	50	45.5	4	5	55	H
SR-EE-65	16	55.2	51.8	45	4	5	65	H
YPE:H HORIZONTRAL TYPE (卧式类型)
V VERTICAL TYPE (立式类型)
