EE42 High Frequency Transformer Circuit Double Winding High Frequency Isolation Transformer

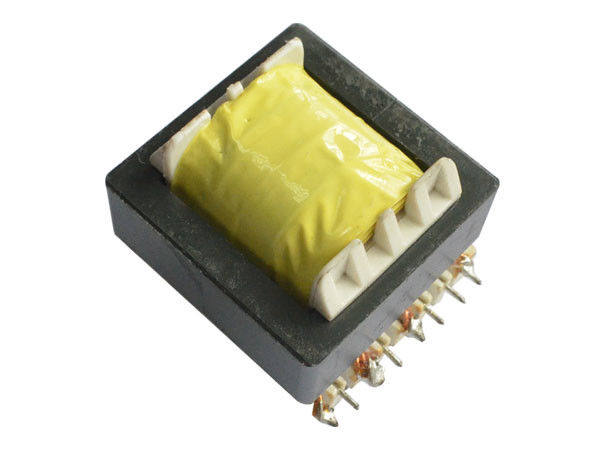

Large Image : EE42 High Frequency Transformer Circuit Double Winding High Frequency Isolation Transformer

Product Details:

Place of Origin:	China
Brand Name:	xjsr
Model Number:	EE42

Payment & Shipping Terms:

Minimum Order Quantity:	1000

Contact Now

EE42 High Frequency Transformer Circuit Double Winding High Frequency Isolation Transformer

Description

Coil Structure:	Toroidal,Double Winding And Multi-winding,EE Transformer,erl35 High Frequeny Transformer,erl Transformer	Usage:	High Frequency,Electronic,All Kinds Of Chargers
Coil Number:	Autotransformer,Double Winding And Multi-winding,customer Needs	Color:	Yellow
Name:	High Fequency Transformer,AC DC Testing Transformer/Electrical Testing Transformer,Lamp Electronic Transformer
High Light:	ee42 high frequency transformer circuit , high frequency isolation transformer ee42 , high frequency isolation transformer double winding

Features and application range:
It has a wide range of application, high working frequency, improve conversion efficiency, and can change the voltage of high-frequency pulses, etc., and is widely used in switching power supplies, computers, electronic ballasts and household appliances.
Product serial number and parameters:

serial number	Number of needles	尺寸(mm)						TYPE
serial number	Number of needles	A	B	C±0.5	D±0.5	E±0.5	F	TYPE
SR-EE-8.3	6	8	8	6	4	2.5	8.3	V
SR-EE-10	8	11.5	10.2	8	4	2.5	10.2	V
SR-EE-13	10	12	12.5	8.5	4	2.5	13	V
SR-EE-16-1	6	14.8	13.3	9	4	3	16	V
SR-EE-16-2	10	15.4	13	10.5	4	3.2	17.1	V
SR-EEL-16	10	28.5	16	12.3	4	4.3	21.9	V
SR-EE-19-1	8	17.6	16	10	4	5	19	V
SR-EE-19-2	10	17.2	16.2	13	4	3.9	20	V
SR-EEL-19	10	31.5	16	10.5	4	4	21.1	V
SR-EEL-19-1	10	15.6	30	24.1	4	3.5	21	H
SR-EE-25-1	6	20	18.2	12.5	4	6.3	25.2	V
SR-EE-25-2	8	21.7	17.5	12.6	4	5	25.2	V
SR-EE-25-3	10	22.2	25	15.4	4	5	26.1	H
SR-EEL-25	8	35.3	17.5	12.5	4	5	25.2	V
SR-EE-30	10	21	29.2	25.2	4	5	30	H
SR-EE-40	14	27.6	30.5	25.8	4	5	40	H
SR-EE-42/15-1	12	33.8	44	35.5	4	5	42	H
SR-EE-42/15-2	16	41.3	48	37.7	4	5	42	H
SR-EE-42/15-3	18	48.7	32	27.5	4	5	45.1	V
SR-EE-42/20-1	12	45	39.8	32.5	4	5	42	V
SR-EE-42/20-2	16	44.2	50	37.8	4	5	42.2	H
SR-EE-42/20-3	18	44.1	37	27.3	4	5	45.3	V
SR-EE-55	20	50	50	45.5	4	5	55	H
SR-EE-65	16	55.2	51.8	45	4	5	65	H
YPE:H HORIZONTRAL TYPE (卧式类型)
V VERTICAL TYPE (立式类型)
