PQ20 PQ26 PQ32 PQ35 PQ Transformer Switching Power Supply Transformers

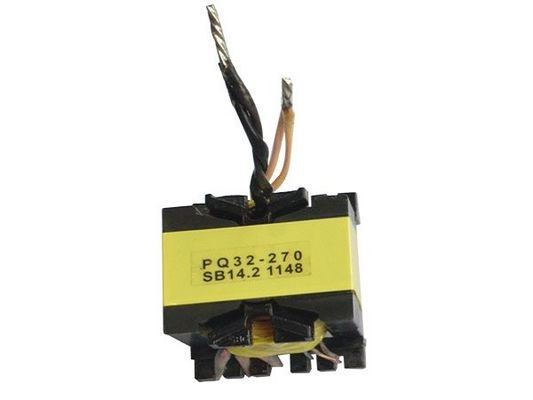

Large Image : PQ20 PQ26 PQ32 PQ35 PQ Transformer Switching Power Supply Transformers

Product Details:

Place of Origin:	Guangdong,shenzhen
Brand Name:	XJSR
Certification:	RoHS,ISO9001-2001
Model Number:	PQ

Contact Now

PQ20 PQ26 PQ32 PQ35 PQ Transformer Switching Power Supply Transformers

Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Material:	Ferrite	Input Voltage:	230VAC
Output Voltage:	10V,17V,24V,30V	Power:	80VA
Model:	EE55 EE14 EE16 EI22 ED8 EI66 EE8.3 EE10 EE12 EE15 EE19 EE20 EE22 EE25 EE29 EE42 EE44 EE48 PQ26	Type:	EE EI PQ EFD EF
High Light:	PQ32 PQ Transformer , PQ26 PQ Transformer , pq20 pulse and high frequency transformer

Features and application scope:

Its characteristics are similar to PTD, with small magnetic leakage, low loss, wide operating frequency, strong anti-interference performance, etc. It is commonly used in switching power supply, fax machine, LCD TV, LED display and other displays.

Product serial number and parameters:

序号	针数	尺寸(mm)
序号	针数	A	B	C±0.5	D±0.5	E	E1	F
SR-PQ2016	14	18.5	23.2	20.6	4	5	3.8	23.1
SR-PQ2020	14	22.3	23.0	20.3	4	5	3.8	23
SR-PQ2620	12	20	29.3	25.4	4	7.7	3.8	26.6
SR-PQ2625	12	28.5	29.6	25.5	4	7.62	3.8	27
SR-PQ3220	12	23.5	34.4	30.7	4	7.62	5.08	32.4
SR-PQ3230	12	33.5	34.2	30.7	4	7.52	5.08	32.3
SR-PQ3535	12	37.5	39.1	35.6	5	10.16	5.08	35
SR-PQ4040	12	41.5	42	38	5	15	5	40

Tag:

PQ Transformer,

PQ32 PQ Transformer,

PQ26 PQ Transformer
