EE55 Horizontal Drive Transformer Power Supply High Frequency Transformer

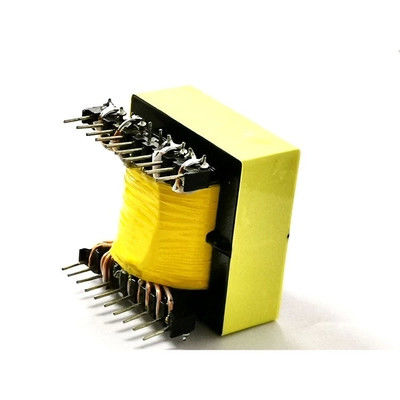

Large Image : EE55 Horizontal Drive Transformer Power Supply High Frequency Transformer

Product Details:

Place of Origin:	Guangdong,shenzhen
Brand Name:	xjsr
Certification:	RoHS,ISO9001-2001 UL
Model Number:	EE55 Horizontal

Contact Now

EE55 Horizontal Drive Transformer Power Supply High Frequency Transformer

Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Material:	Ferrite	Input Voltage:	230VAC
Output Voltage:	10V,17V,24V,30V	Power:	80VA
Model:	EE55 EE14 EE16 EI22 ED8 EI66 EE8.3 EE10 EE12 EE15 EE19 EE20 EE22 EE25 EE29 EE42 EE44 EE48 PQ26	Type:	EE EI PQ EFD EF
High Light:	ee42 horizontal drive transformer , toroidal horizontal transformer , EE55 horizontal drive transformer

EE55 Horizontal Direct Plug	Material:	Magnetic Core/Bakelite Frame/enamelled Copper Wire
Electricity:	High-frequency Transformer	Transformer Parameters:	Customized
Transformer Package:	EE55 Horizontal Direct Plug
High Light:	Medical Equipment High Frequency Transformer , magnetic core power supply transformer , Transformer EE55 Horizontal Direct Plug

Magnetic core medical equipment power supply high frequency transformer EE55 Horizontal direct plug

In the process of power transmission, the magnetic core can be divided into two working modes: one-direction change and two-direction change of magnetic flux. In the unidirectional change mode, the magnetic flux density changes from the maximum Bm to the residual magnetic flux density Br, or changes from Br to Bm. Magnetic flux density variation value Δb = Bm-Br.

Magnetic core medical equipment power supply high frequency transformer EE55 Horizontal direct plug

Specifications	EE55 Horizontal direct plug
Product material	Magnetic core/Bakelite frame/enamelled copper wire
Product Size	56mmx65mmx35mm
